Gealan S8000 IQ Profile 5-Chamber System
The Gealan S8000 IQ 5-chamber profile is a versatile and efficient PVC window solution, known for its excellent balance of thermal protection, stability, and modern design. With a construction depth of 74 mm, it caters to various architectural needs, providing both aesthetic appeal and functional benefits.
Technical Specifications

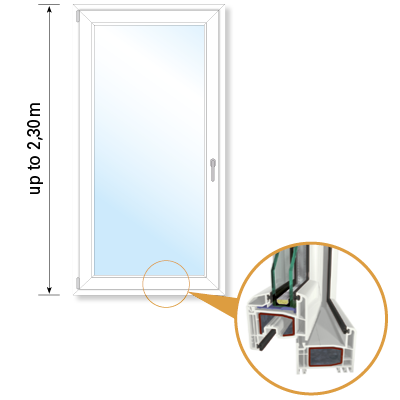

- Construction Depth: 74 mm
- WIDTH OF THE GLASS: Up to 46 mm (with STV® up to 48 mm)
- Thermal Protection: Excellent
- Static: Very good
- White plastic: YES
- Acrylic color: NO
- Decorative foils: YES
- Aluminum cladding: YES
- Design variant: YES
- GECCO ventilation system:YES
- Window hardware: G-U Uni-jet
- Handles: HOPPE Secustik
Features and Benefits
Static
The development of the S8000 IQ system placed special emphasis on the stability of the profiles. The main chamber is correspondingly enlarged to accommodate the reinforcement, offering excellent resistance to bending and allowing for the creation of large elements without compromising stability.
Design
The S8000 IQ profile is designed to meet all aesthetic requirements. With various glazing beads and smooth, glossy exterior surfaces, this system adds style and elegance, making it ideal for both classic and modern window designs.
Acrylcolor – Proven Quality
Through co extrusion technology, GEALAN offers durable colored profiles with superior color properties and high long-term resistance. The outer acrylic layer reflects sunlight, significantly reducing the heating of the profile.
GECCO Ventilation System
The automatic GECCO ventilation system prevents mold formation and ensures optimal air exchange, reducing energy losses. The know-how flap regulates ventilation automatically, providing high thermal and sound insulation without allowing drafts.
Thermal Insulation
The S8000 IQ system, with a construction depth of 74 mm and multiple chambers, offers excellent thermal insulation. The U-values achieved are among the best for PVC profile systems, ensuring a comfortable indoor climate and reducing energy losses.
Burglar Protection
The S8000 IQ profile offers exceptional burglar protection. Large steel reinforcements and secure locking mechanisms ensure a high level of security, protecting the home against occasional burglars.
Window Hardware: G-U Uni-Jet
For the Gealan profiles, our products feature the advanced G-U Uni-Jet window hardware system. This system ensures smooth and reliable operation of windows, providing enhanced security and durability. The G-U Uni-Jet technology is known for its innovative design, which includes adjustable components that cater to various window configurations, ensuring optimal performance and ease of use.
Handles: HOPPE Secustik
In addition to the advanced G-U Uni-Jet window hardware, our Gealan profiles are equipped with HOPPE Secustik® handles. These handles feature an integrated jamming-device that enhances security by making it difficult to manipulate the window fitting from the outside. The coupling element in the handle acts like a mechanical diode, allowing normal use from the inside while jamming any attempts to turn the handle from the outside.
Profile GEALAN
Gealan profiles with 5 or 6 chambers. Uf coefficient of 0.89 W/(m²K)
