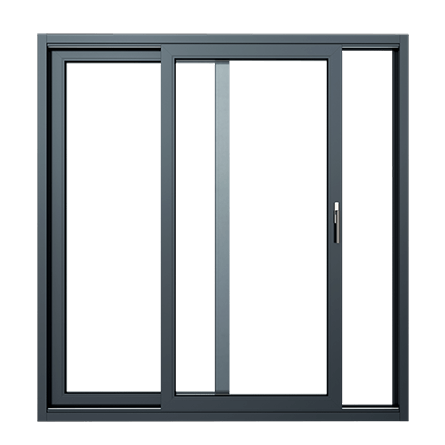

Profile Deceuninck Hebeschiebe HS76 Lift & Slide
The Deceuninck Elegant Profile System is engineered to meet the highest standards of energy efficiency, durability, and aesthetic appeal. It offers versatile design options, making it an ideal choice for creating modern, sustainable, and cost-effective buildings.
In the design of the Hebeschiebe 76 / Gasket Sliding System, all profiles and accessories are based on the concept of insulation. The casements are 76 mm in width with 4 chambers. The use of support plates with a higher value at the moment of inertia allows for joinery with wider spaces. It is possible to use both aluminum and PVC as the bottom frame. Special gaskets are used in the system to provide an excellent level of insulation. In addition, it is possible to use glazing up to 45 mm in thickness. The Hebeschiebe 76 / Gasket Sliding System provides solutions for all tastes using the variety of color options of Deceuninck, with 24 foil colors available.
Technical Information
- Profile Width: 76 mm
- Chambers: 4
- Material Options: Aluminum or PVC for the bottom frame
- Glazing Thickness: Up to 45 mm
- Insulation: Special gaskets for enhanced insulation
- Support Plates: High inertia value for wider spaces
- Color Options: 24 foil colors from Deceuninck
Profile DECEUNINCK
Deceuninck profiles feature multiple chambers and have a Uf coefficient of 1.2 W/(m²K)
